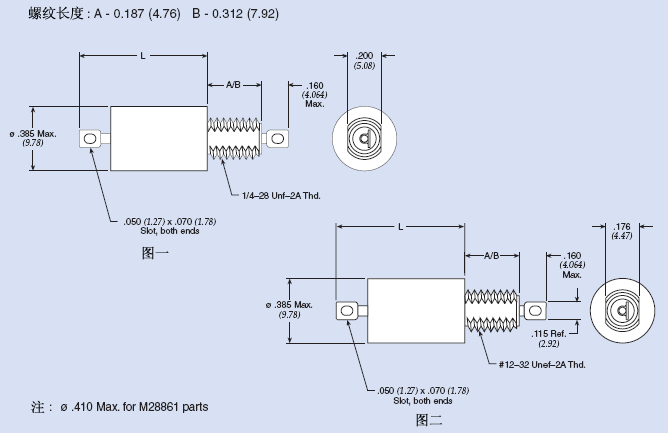

.375φ（Max.9.78mm） C型电路标准系列
|
型号 |
图
号 |
额定电压 |
电流
Amp |
最小
电容量
μF |
最大
L
mm |
螺纹长度 |
最小插入损耗（dB） |
|
85℃
DC | AC |
125℃
DC | AC |
30
KHz |
150
KHz |
300
KHz |
1
MHz |
10
MHz |
100
MHz |
1
GHz |
|
54-367-008 |
1 |
80 |
--- |
50 |
--- |
15 |
1.400 |
9.830 |
A |
15 |
28 |
33 |
44 |
60 |
70 |
70 |
|
54-370-007 |
1 |
80 |
--- |
50 |
--- |
15 |
2.800 |
14.630 |
A |
20 |
34 |
39 |
50 |
60 |
70 |
70 |
|
54-371-001 |
1 |
80 |
--- |
50 |
-- |
15 |
4.000 |
17.475 |
A |
26 |
40 |
46 |
55 |
60 |
70 |
70 |
|
54-367-005 |
1 |
150 |
--- |
100 |
--- |
15 |
0.450 |
9.830 |
A |
6 |
19 |
25 |
36 |
55 |
70 |
70 |
|
9920-100-6002 |
1 |
200 |
--- |
150 |
--- |
15 |
0.150 |
9.830 |
A |
--- |
6 |
15 |
26 |
42 |
55 |
70 |
|
54-367-007 |
1 |
250 |
--- |
200 |
--- |
15 |
0.015 |
9.830 |
A |
--- |
--- |
--- |
6 |
25 |
45 |
50 |
|
54-367-006 |
1 |
250 |
--- |
200 |
--- |
15 |
0.250 |
9.830 |
A |
--- |
14 |
19 |
30 |
50 |
65 |
70 |
|
54-370-006 |
1 |
250 |
--- |
200 |
--- |
15 |
0.500 |
16.002 |
A |
7 |
20 |
28 |
39 |
55 |
70 |
70 |
|
9923-100-6004 |
1 |
400 |
--- |
400 |
--- |
15 |
0.060 |
10.541 |
A |
--- |
5 |
10 |
18 |
38 |
55 |
70 |
.375φ（Max.9.78mm） C型电路军标认证系列
|
型号 |
M15733
M28861
军标号 |
图
号 |
额定电压 |
电流
Amp |
最小
电容量
μF |
最大
L
mm |
螺纹长度 |
最小插入损耗（dB） |
|
85℃
DC |AC |
125℃
DC | AC |
30
KHz |
150
KHz |
300
KHz |
1
MHz |
10
MHz |
100
MHz |
1
GHz |
|
54-367-054 |
1-012 |
1 |
--- |
--- |
50 |
--- |
15 |
1.200 |
10.414 |
B |
15 |
28 |
33 |
40 |
40 |
70 |
70 |
|
54-367-049 |
1-002 |
1 |
--- |
--- |
50 |
--- |
15 |
1.200 |
10.414 |
A |
15 |
28 |
33 |
40 |
40 |
70 |
70 |
|
54-370-032 |
49-0008 |
1 |
--- |
--- |
50 |
-- |
15 |
2.100 |
14.630 |
A |
20 |
33 |
40 |
50 |
65 |
70 |
70 |
|
54-367-055 |
1-014 |
1 |
--- |
--- |
70 |
--- |
15 |
0.700 |
10.414 |
B |
10 |
24 |
30 |
40 |
40 |
64 |
70 |
|
54-370-030 |
34-0035 |
2 |
--- |
--- |
100 |
--- |
10 |
0.300 |
12.040 |
A |
7 |
19 |
25 |
35 |
55 |
70 |
70 |
|
54-367-051 |
1-006 |
1 |
--- |
--- |
100 |
--- |
15 |
0.450 |
10.414 |
A |
6 |
19 |
25 |
36 |
40 |
60 |
70 |
|
54-367-056 |
1-016 |
1 |
--- |
--- |
100 |
-- |
15 |
0.450 |
10.414 |
B |
6 |
19 |
25 |
36 |
40 |
60 |
70 |
|
54-367-057 |
1-018 |
1 |
--- |
--- |
150 |
-- |
15 |
0.250 |
10.414 |
B |
-- |
14 |
20 |
31 |
40 |
56 |
70 |
|
54-367-053 |
1-010 |
1 |
--- |
--- |
200 |
-- |
15 |
0.150 |
10.414 |
A |
-- |
10 |
16 |
26 |
40 |
52 |
70 |
|
54-367-058 |
1-020 |
1 |
--- |
-- |
200 |
-- |
15 |
0.150 |
10.414 |
B |
-- |
10 |
16 |
26 |
40 |
52 |
70 |
|
54-370-034 |
49-0010 |
1 |
--- |
--- |
330 |
-- |
15 |
0.062 |
17.272 |
A |
-- |
2 |
7 |
17 |
37 |
55 |
70 |
