深圳市特美威电子有限公司375φ（Max.9.78mm） L型电路标准系列和军标认证系列

375φ（Max.9.78mm） L型电路标准系列和军标认证系列

.375φ（Max.9.78mm） L型电路标准系列

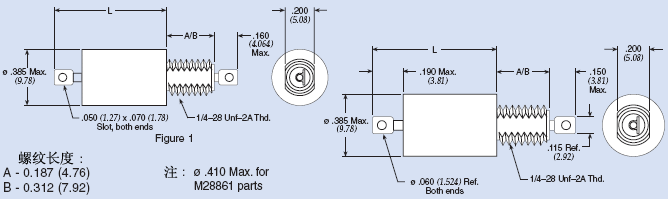

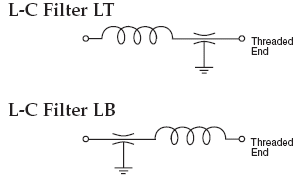

型号	图号	额定电压				电流 Amp	最小电容量 μF	电路	最大 L mm	螺纹长度	最小插入损耗（dB）
型号	图号	85℃ DC \| AC		125℃ DC \| AC		电流 Amp	最小电容量 μF	电路	最大 L mm	螺纹长度	30 KHz	150 KHz	300 KHz	1 MHz	10 MHz	100 MHz	1 GHz
51-353-007	1	80	---	50	---	0.06	1.400	LB	19.558	A	44	70	70	70	70	70	70
51-353-095	1	80	---	50	---	0.15	1.400	LT	24.384	A	21	52	64	70	70	70	70
51-353-003	1	80	---	50	---	0.45	1.400	LB	19.558	A	16	31	37	55	70	70	70
51-353-099	1	80	---	50	---	1.00	1.400	LT	19.558	A	16	33	44	70	70	70	70
51-353-100	1	80	---	50	---	5.00	1.400	LT	19.558	A	15	28	33	46	70	70	70
9200-300-0025	1	80	---	50	---	10.00	1.200	LB	11.430	A	15	28	33	44	60	70	70
9200-303-0095	1	80	---	50	---	10.00	1.200	LB	11.430	B	15	28	33	44	60	70	70
51-353-101	1	80	---	50	---	10.00	1.400	LT	11.430	A	14	28	33	44	60	70	70
51-353-109	1	80	---	50	---	10.00	1.400	LT	11.430	B	15	28	33	44	60	70	70
51-353-120	1	150	---	100	---	1.00	0.750	LB	19.253	A	9	27	36	57	70	70	70
9000-103-0019	1	150	---	100	---	5.00	0.450	LT	19.253	B	6	20	26	37	68	70	70
SCI-2120-014	1	150	---	100	---	10.00	1.000	LB	11.430	B	14	28	34	44	52	70	70
51-353-110	1	250	---	200	125	1.00	0.250	LT	19.253	A	---	17	29	50	70	70	70
51-353-111	1	250	---	200	125	1.00	0.250	LB	19.253	A	---	17	29	50	70	70	70
51-353-112	1	250	---	200	125	3.00	0.250	LT	19.253	A	---	13	20	35	70	70	70
51-353-113	1	250	---	200	125	3.00	0.250	LB	19.253	A	---	13	20	35	70	70	70
51-353-114	1	250	---	200	125	5.00	0.250	LT	19.253	A	---	12	20	30	62	70	70
51-353-116	1	250	---	200	125	10.00	0.250	LT	11.430	A	---	15	20	30	50	70	70
SCI-2320-010	1	300	---	300	125	0.50	0.150	LB	19.253	B	---	23	35	56	70	70	70
SCI-2320-004	1	300	---	300	125	1.00	0.150	LB	19.253	A	---	10	21	41	70	70	70
SCI-2320-005	1	300	---	300	125	2.00	0.150	LB	19.253	A	---	8	14	30	70	70	70
SCI-2320-006	1	300	---	300	125	3.00	0.150	LB	19.253	A	---	8	14	26	64	70	70
SCI-2320-007	1	300	---	300	125	10.00	0.150	LB	11.430	A	---	8	14	25	45	52	70
SCI-2320-014	1	300	---	300	125	10.00	0.150	LB	11.430	B	---	8	14	25	45	52	70

.375φ（Max.9.78mm） L型电路军标认证系列

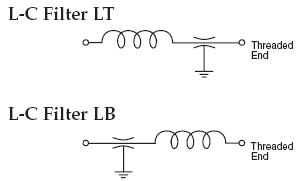

型号	M15733 M28861 军标号	图号	额定电压				电流 Amp	最小电容量 μF	电路	最大 L mm	螺纹长度	最小插入损耗（dB）
型号	M15733 M28861 军标号	图号	85℃ DC \| AC		125℃ DC \| AC		电流 Amp	最小电容量 μF	电路	最大 L mm	螺纹长度	30 KHz	150 KHz	300 KHz	1 MHz	10 MHz	100 MHz	1 GHz
51-390-018	23-0026	1	---	---	50	---	0.5	1.400	LB	16.002	A	12	36	48	69	70	70	70
51-390-026	23-0038	1	---	---	50	---	1.00	1.400	LB	16.002	A	11	26	36	55	70	70	70
51-390-034	23-0050	1	---	---	50	---	2.00	1.400	LB	16.002	A	10	24	32	48	70	70	70
51-353-067	24-0060	1	80	--	50	---	10.00	1.400	LB	19.304	B	15	28	31	42	56	70	70
51-353-207	34-0007	1	---	---	50	---	10.00	1.400	LB	19.304	A	15	28	31	42	56	70	70
51-444-072	58-0002	1	80	---	50	---	10.00	1.400	LT	13.843	A	15	28	33	44	60	70	70
51-353-066	24-0005	1	80	---	50	---	10.00	1.400	LB	19.304	A	15	28	31	42	56	70	70
51-353-287	39-0014	1	---	---	50	---	10.00	1.400	LT	19.304	B	14	28	34	44	52	70	70
51-444-060	24-0008	1	80	---	50	---	10.00	1.400	LT	18.796	B	15	28	31	42	56	70	70
51-343-028	38-0002	1	---	---	50	---	15.00	1.400	LB	12.217	A	15	28	33	44	64	70	70
51-343-034	38-0006	1	---	---	50	---	15.00	1.400	LB	12.217	B	15	28	33	44	64	70	70
51-353-053	25-0003	1	---	---	100	---	1.00	0.450	LB	18.745	A	6	23	34	55	70	70	70
51-353-054	25-0005	1	---	---	100	---	5.00	0.450	LT	19.253	A	6	17	23	35	69	70	70
51-353-055	25-0008	1	---	---	100	---	5.00	0.450	LB	18.745	A	6	17	23	35	69	70	70
51-353-155	39-0008	1	---	---	100	---	5.00	0.450	LB	19.304	A	6	20	26	35	60	60	70
51-444-039	25-0017	1	---	---	100	---	5.00	0.450	LT	19.253	B	6	17	23	35	69	70	70
51-444-040	25-0020	1	---	---	100	---	5.00	0.450	LB	18.745	B	6	17	23	35	69	70	70
51-353-156	39-0009	1	---	---	100	---	10.00	0.450	LT	19.304	A	6	20	26	35	56	60	70
51-353-157	39-0010	1	---	---	100	---	10.00	0.450	LB	19.304	A	6	20	26	35	56	60	70
51-353-076	26-0001	1	---	---	150	125	1.00	0.250	LT	19.253	A	---	13	24	45	80	70	70
51-353-077	26-0003	1	---	---	150	125	1.00	0.250	LB	18.745	A	---	13	24	45	80	70	70
51-444-043	26-0013	1	---	---	150	125	1.00	0.250	LT	19.253	B	---	13	24	45	80	70	70
51-444-044	26-0015	1	---	---	150	125	1.00	0.250	LB	18.745	B	---	13	24	45	80	70	70
51-390-040	23-0058	1	---	---	150	---	2.00	0.0250	LT	16.002	A	3	15	23	38	60	70	60
51-390-039	23-0057	1	---	---	150	---	3.00	00250	LT	16.002	B	3	15	23	38	60	70	60
51-444-005	34-0015	1	---	---	150	125	3.00	0.150	LT	19.253	B	---	8	15	30	68	70	70
51-353-078	26-0004	1	---	---	150	125	3.00	0.250	LT	19.253	A	---	8	15	30	68	70	70
51-353-079	26-0006	1	---	---	150	125	3.00	0.250	LB	18.745	A	---	8	15	30	68	70	70
51-444-046	26-0018	1	---	---	150	125	3.00	0.250	LB	18.745	B	---	8	15	30	68	70	70
51-444-047	26-0019	1	---	---	150	125	5.00	0.250	LT	19.253	B	---	8	14	30	58	70	70
51-353-080	26-0007	1	---	---	150	125	5.00	0.250	LT	19.253	A	---	8	14	25	58	70	70
51-353-081	26-0010	1	---	---	150	125	5.00	0.250	LB	18.745	A	---	8	14	25	58	70	70
51-444-027	34-0030	1	---	---	200	125	5.00	0.250	LB	22.860	A	2	15	21	32	60	70	70
51-444-117	54-0018	2	---	---	300	125	1.00	0.150	LB	18.796	A	---	10	21	41	70	70	70
