4-40螺装(孔径3.05mm) C型电路 |
|
|
|
|
|
4-40螺装(孔径3.05mm) C型电路
|
型号 |

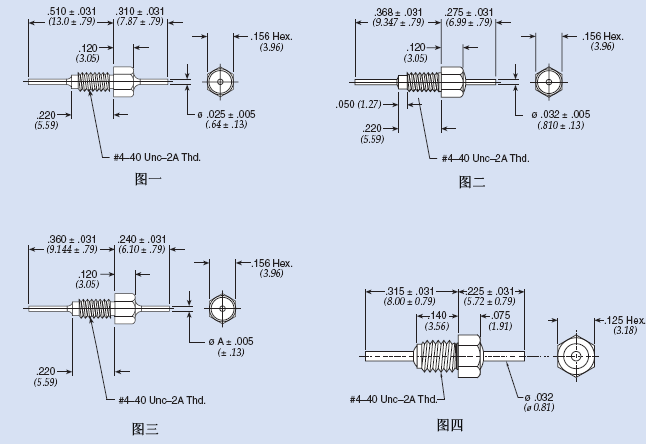

图
号 |
额定电压
125℃ |
电流
Amp |
最小
电容量 |
A尺寸
mm |
最小插入损耗（dＢ） |
|
|
1
MHz |
3
MHz |
10
MHz |
30
MHz |
100
MHz |
300
MHz |
1
GHz |
10
GHz |
|
|
DC |
AC |
|
|
SCI-9110-100 |
3 |
50 |
-- |
10 |
10pF |
0.81 |
-- |
-- |
-- |
-- |
-- |
-- |
10 |
10 |
|
|
9900-381-6004 |
2 |
50 |
--- |
10 |
5000pF |
-- |
--- |
--- |
15 |
22 |
30 |
35 |
45 |
55 |
|
|
9900-381-6026 |
2 |
50 |
--- |
10 |
0.031µF |
-- |
12 |
20 |
25 |
35 |
40 |
45 |
55 |
60 |
|
|
9900-381-6006 |
2 |
50 |
--- |
10 |
0.045µF |
-- |
14 |
22 |
30 |
40 |
45 |
50 |
55 |
60 |
|
|
54-790-023 |
1 |
100 |
--- |
10 |
0.056µF |
-- |
15 |
24 |
34 |
41 |
45 |
50 |
60 |
60 |
|
|
54790001X5F101M |
1 |
100 |
--- |
10 |
100pF±20% |
-- |
--- |
--- |
--- |
--- |
--- |
10 |
20 |
25 |
|
|
54-790-019 |
1 |
100 |
--- |
10 |
2700pF |
-- |
--- |
--- |
9 |
18 |
27 |
33 |
35 |
35 |
|
|
9900-381-6013 |
2 |
100 |
--- |
10 |
2700pF |
-- |
--- |
--- |
10 |
18 |
25 |
33 |
40 |
50 |
|
|
54-790-020 |
1 |
100 |
--- |
10 |
5600pF |
-- |
--- |
--- |
15 |
24 |
33 |
37 |
40 |
40 |
|
|
SCI-9112-273 |
3 |
100 |
--- |
3 |
0.027µF |
0.41* |
10 |
20 |
30 |
37 |
45 |
45 |
55 |
60 |
|
|
SCI-9110-273 |
3 |
100 |
--- |
10 |
0.027µF |
0.51 |
10 |
20 |
30 |
37 |
45 |
45 |
55 |
60 |
|
|
54-790-022 |
1 |
100 |
--- |
10 |
0.027µF |
-- |
10 |
20 |
30 |
37 |
45 |
50 |
55 |
60 |
|
|
SCI-9112-503 |
3 |
100 |
--- |
3 |
0.05µF |
0.41* |
15 |
24 |
35 |
41 |
45 |
50 |
60 |
60 |
|
|
SCI-9110-503 |
3 |
100 |
--- |
10 |
0.05µF |
0.51 |
15 |
24 |
35 |
41 |
45 |
50 |
60 |
60 |
|
|
54-862-001 |
4 |
200 |
--- |
10 |
10pF |
-- |
--- |
--- |
--- |
--- |
--- |
--- |
10 |
10 |
|
|
54-862-002 |
4 |
200 |
--- |
10 |
100pF |
-- |
--- |
--- |
--- |
--- |
3 |
10 |
20 |
28 |
|
|
54-862-003 |
4 |
200 |
--- |
10 |
1000pF |
-- |
--- |
--- |
--- |
--- |
15 |
25 |
35 |
40 |
|
|
9900-381-6020 |
2 |
200 |
--- |
10 |
100pF |
-- |
--- |
--- |
--- |
--- |
3 |
10 |
20 |
28 |
|
|
SCI-9122-101 |
3 |
200 |
115 |
3 |
100pF |
0.41* |
--- |
--- |
--- |
--- |
--- |
10 |
20 |
20 |
|
|
SCI-9120-101 |
3 |
200 |
115 |
10 |
100pF |
0.51 |
--- |
--- |
--- |
--- |
--- |
10 |
20 |
20 |
|
|
9900-381-6021 |
2 |
200 |
--- |
10 |
500pF |
-- |
--- |
--- |
--- |
--- |
15 |
20 |
35 |
40 |
|
|
SCI-9122-102 |
3 |
200 |
115 |
3 |
1000pF |
0.41* |
--- |
--- |
--- |
11 |
20 |
28 |
28 |
68 |
|
|
SCI-9120-102 |
3 |
200 |
115 |
10 |
1000pF |
0.51 |
--- |
--- |
--- |
11 |
20 |
28 |
28 |
68 |
|
|
9900-381-6022 |
2 |
200 |
--- |
10 |
1200pF |
-- |
--- |
--- |
5 |
9 |
20 |
28 |
35 |
45 |
|
|
SCI-9122-502 |
3 |
200 |
115 |
3 |
5000pF |
0.41* |
--- |
--- |
15 |
24 |
33 |
37 |
40 |
50 |
|
|
SCI-9120-502 |
3 |
200 |
115 |
10 |
5000pF |
0.51 |
--- |
--- |
15 |
24 |
33 |
37 |
40 |
50 |
|
|
SCI-9122-103 |
3 |
200 |
115 |
3 |
0.01µF |
0.41* |
--- |
12 |
20 |
29 |
38 |
45 |
50 |
55 |
|
|
SCI-9120-103 |
3 |
200 |
115 |
10 |
0.01µF |
0.51 |
--- |
12 |
20 |
29 |
38 |
45 |
50 |
55 |
|
|
9900-381-6005 |
2 |
200 |
--- |
10 |
0.015µF |
-- |
7 |
9 |
20 |
29 |
35 |
45 |
50 |
60 |
|
|
54-790-018 |
1 |
300 |
--- |
10 |
1000pF |
-- |
--- |
--- |
--- |
9 |
20 |
28 |
28 |
68 |
|
|
54-790-021 |
1 |
300 |
--- |
10 |
0.01µF |
-- |
--- |
9 |
20 |
29 |
38 |
45 |
50 |
50 |
| |
|
|
|
|
|
