4-40螺装(孔径3.05mm) L & Pi型电路 |
|
|
|
|
|
4-40螺装(孔径3.05mm) L & Pi型电路
|
型号 |

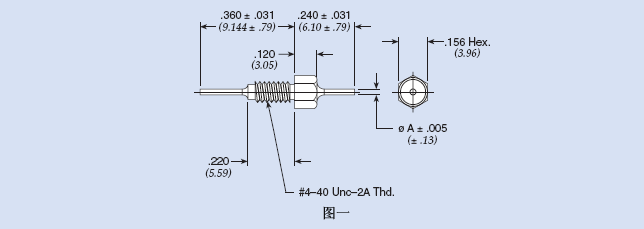

图
号 |
额定电压
125℃ |
电流
Amp |
电路
型式 |
最小
电容量 |
A尺寸
mm |
最小插入损耗（dＢ） |
|
|
1
MHz |
3
MHz |
10
MHz |
30
MHz |
100
MHz |
300
MHz |
1
GHz |
10
GHz |
|
|
DC |
AC |
|
|
51-729-305 |
1 |
50 |
-- |
3 |
Pi |
5500pF |
0.46 |
-- |
7 |
14 |
40 |
60 |
70 |
70 |
70 |
|
|
51-729-312 |
1 |
50 |
-- |
3 |
Pi |
7000pF |
0.46 |
-- |
8 |
15 |
40 |
65 |
70 |
70 |
70 |
|
|
SCI-3102-002 |
1 |
50 |
-- |
3 |
LB |
0.075µF |
0.41* |
18 |
25 |
37 |
42 |
52 |
55 |
70 |
70 |
|
|
SCI-3102-000 |
1 |
50 |
-- |
5 |
LB |
0.075µF |
0.41 |
18 |
25 |
37 |
42 |
52 |
55 |
70 |
70 |
|
|
SCI-3102-007 |
1 |
50 |
-- |
10 |
LB |
0.075µF |
0.64 |
18 |
25 |
37 |
42 |
52 |
55 |
70 |
70 |
|
|
51-729-304 |
1 |
100 |
-- |
3 |
LB |
0.022µF |
0.46 |
7 |
17 |
27 |
34 |
43 |
47 |
55 |
55 |
|
|
SCI-3112-002 |
1 |
100 |
-- |
3 |
LB |
0.027µF |
0.41* |
10 |
20 |
30 |
38 |
45 |
45 |
65 |
70 |
|
|
SCI-3112-000 |
1 |
100 |
-- |
5 |
LB |
0.027µF |
0.41 |
10 |
20 |
30 |
38 |
45 |
45 |
65 |
70 |
|
|
SCI-3112-007 |
1 |
100 |
-- |
10 |
LB |
0.027µF |
0.64 |
10 |
20 |
30 |
38 |
45 |
45 |
65 |
70 |
|
|
SCI-3112-102 |
1 |
100 |
-- |
3 |
LB |
0.05µF |
0.41* |
15 |
24 |
35 |
42 |
54 |
56 |
70 |
70 |
|
|
SCI-3112-100 |
1 |
100 |
-- |
5 |
LB |
0.05µF |
0.41 |
15 |
24 |
35 |
42 |
54 |
56 |
70 |
70 |
|
|
SCI-3112-107 |
1 |
100 |
-- |
10 |
LB |
0.05µF |
0.64 |
15 |
24 |
35 |
42 |
54 |
56 |
70 |
70 |
|
|
51-729-303 |
1 |
200 |
-- |
3 |
Pi |
1500pF |
0.46 |
--- |
--- |
5 |
15 |
42 |
65 |
70 |
70 |
|
|
SCI-3122-002 |
1 |
200 |
115 |
3 |
LB |
0.01µF |
0.41* |
--- |
12 |
21 |
30 |
41 |
45 |
70 |
70 |
|
|
SCI-3122-000 |
1 |
200 |
115 |
5 |
LB |
0.01µF |
0.41 |
--- |
12 |
21 |
30 |
41 |
45 |
70 |
70 |
|
|
SCI-3122-007 |
1 |
200 |
115 |
10 |
LB |
0.01µF |
0.64 |
--- |
12 |
21 |
30 |
41 |
45 |
70 |
70 |
|
﹡表示不锈钢引线镀锡 |
|
|
|
|
|
