6-32螺装(孔径3.73mm) C & L & Pi/6-40 & Pi型电路 |
|
|
|
|
|
6-32螺装(孔径3.73mm) C & L & Pi/6-40 & Pi型电路
|

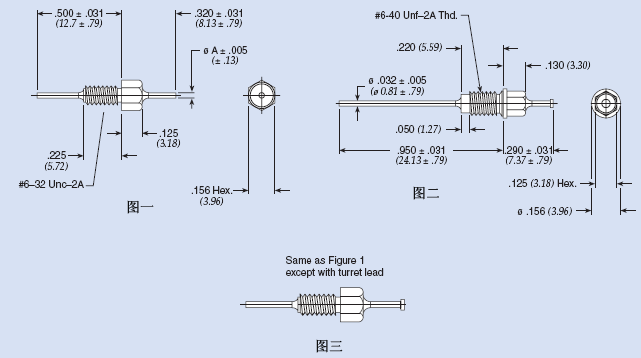

型号 |
图
号 |
额定电压
125℃ |
电流
Amp |
电路
型式 |
最小
电容量 |
A尺寸
mm |
最小插入损耗（dＢ） |
|
|
1
MHz |
3
MHz |
10
MHz |
30
MHz |
100
MHz |
300
MHz |
1
GHz |
10
GHz |
|
|
DC |
AC |
|
|
51-726-008 |
1 |
50 |
- |
3 |
Pi |
5500pF |
0.46 |
- |
7 |
14 |
30 |
55 |
70 |
70 |
70 |
|
|
51-726-017 |
1 |
50 |
- |
3 |
Pi |
9000pF |
0.46 |
--- |
8 |
18 |
45 |
65 |
70 |
70 |
70 |
|
|
54-779-019 |
1 |
50 |
- |
10 |
C |
0.10µF |
0.81 |
22 |
31 |
40 |
44 |
47 |
55 |
65 |
65 |
|
|
54779001X5F100M |
1 |
100 |
- |
10 |
C |
10pF±20% |
0.81 |
--- |
--- |
--- |
--- |
--- |
--- |
10 |
10 |
|
|
54779001X5U102P |
1 |
100 |
- |
10 |
C |
1000pF |
0.81 |
--- |
-- |
--- |
10 |
21 |
28 |
28 |
28 |
|
|
54-779-014 |
1 |
100 |
- |
10 |
C |
2700pF |
0.81 |
--- |
--- |
9 |
18 |
27 |
33 |
35 |
35 |
|
|
54-779-016 |
1 |
100 |
- |
10 |
C |
0.01µF |
0.81 |
--- |
9 |
20 |
29 |
38 |
45 |
50 |
50 |
|
|
51-726-002 |
3 |
100 |
- |
10 |
LB |
0.022µF |
0.81 |
7 |
17 |
27 |
34 |
43 |
50 |
60 |
60 |
|
|
54-779-017 |
1 |
100 |
- |
10 |
C |
0.027µF |
0.81 |
10 |
20 |
30 |
37 |
45 |
50 |
55 |
60 |
|
|
54-779-018 |
1 |
100 |
- |
10 |
C |
0.050µF |
0.81 |
15 |
24 |
34 |
41 |
45 |
50 |
60 |
60 |
|
|
51-726-001 |
1 |
200 |
- |
3 |
Pi |
1500pF |
0.46 |
--- |
--- |
5 |
15 |
42 |
65 |
70 |
70 |
|
|
1289-001 |
2 |
200 |
- |
10 |
Pi |
1500pF |
--- |
--- |
--- |
5 |
15 |
40 |
60 |
60 |
60 |
|
|
1289-004 |
2 |
200 |
- |
10 |
Pi |
3000pF |
--- |
--- |
--- |
8 |
15 |
50 |
65 |
70 |
70 |
|
|
54-779-015 |
1 |
200 |
- |
10 |
C |
5600pF |
0.81 |
--- |
--- |
15 |
24 |
33 |
37 |
40 |
40 |
| |
|
|
|
|
|
