8-32螺装(孔径4.39mm) L & Pi型电路
|
型号 |
M15733
军标号 |

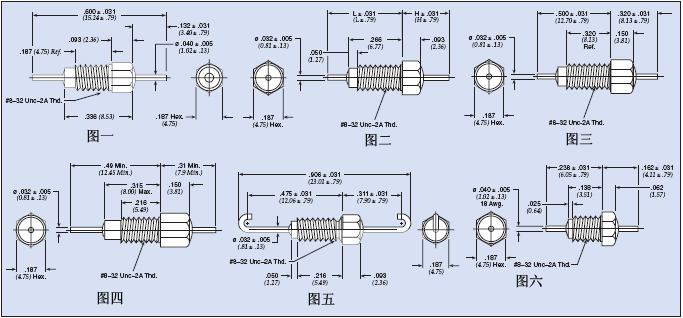

图
号 |
额定电压
125℃ |
电流
Amp |
电
路 |
最小
电容量 |
H
mm |
L
mm |
最小插入损耗（dＢ） |
|
|
1
MHz |
3
MHz |
10
MHz |
30
MHz |
100
MHz |
300
MHz |
1
GHz |
10
GHz |
|
|
DC |
AC |
|
|
51-712-069 |
--- |
2 |
50 |
-- |
10 |
Pi |
0.012µF |
6.73 |
10.49 |
5 |
9 |
18 |
45 |
65 |
70 |
70 |
70 |
|
|
51-712-065 |
61-0014 |
4 |
50 |
-- |
20 |
Pi |
0.012µF |
7.87 |
12.45 |
-- |
10 |
20 |
30 |
65 |
70 |
70 |
70 |
|
|
1250-054 |
-- |
2 |
70 |
-- |
10 |
Pi |
5000pF |
7.92 |
12.70 |
-- |
-- |
20 |
30 |
65 |
65 |
70 |
70 |
|
|
1293-001 |
-- |
3 |
70 |
-- |
10 |
Pi |
0.028µF |
-- |
-- |
10 |
14 |
38 |
65 |
75 |
75 |
75 |
75 |
|
|
51-712-055 |
43-0002 |
2 |
100 |
70 |
10 |
Pi |
3000pF |
7.92 |
14.68 |
-- |
-- |
5 |
15 |
45 |
50 |
50 |
50 |
|
|
51-712-014 |
28-0001 |
2 |
100 |
70 |
10 |
Pi |
3000pF |
7.92 |
22.61 |
-- |
-- |
5 |
15 |
45 |
60 |
60 |
60 |
|
|
51-712-028 |
28-0002 |
5 |
100 |
70 |
10 |
Pi |
3000pF |
-- |
-- |
-- |
-- |
5 |
15 |
45 |
60 |
60 |
60 |
|
|
51-712-063﹡ |
61-0008 |
2 |
100 |
70 |
5 |
Pi |
5500pF |
7.92 |
12.70 |
-- |
-- |
15 |
35 |
65 |
70 |
70 |
70 |
|
|
51-712-003﹟ |
-- |
2 |
100 |
-- |
10 |
LB |
0.022µF |
7.11 |
21.59 |
7 |
17 |
27 |
34 |
43 |
50 |
60 |
60 |
|
|
51-712-060﹟ |
28-0004 |
2 |
100 |
70 |
10 |
LB |
0.022µF |
7.92 |
22.61 |
10 |
17 |
28 |
34 |
41 |
50 |
60 |
60 |
|
|
51-712-067 |
61-0013 |
2 |
100 |
-- |
10 |
LB |
0.031µF |
7.11 |
22.61 |
10 |
20 |
30 |
38 |
42 |
52 |
60 |
60 |
|
|
51-762-006 |
44-0003 |
6 |
125 |
85 |
15 |
Pi |
65pF |
-- |
-- |
-- |
-- |
-- |
-- |
-- |
-- |
16 |
42 |
|
|
1250-059 |
-- |
6 |
125 |
-- |
15 |
Pi |
1500pF |
-- |
-- |
-- |
-- |
5 |
15 |
35 |
45 |
60 |
60 |
|
|
51-762-005 |
44-0002 |
6 |
125 |
85 |
15 |
Pi |
1500pF |
-- |
-- |
-- |
-- |
5 |
15 |
25 |
35 |
50 |
50 |
|
|
1250-062 |
-- |
1 |
125 |
-- |
15 |
Pi |
3000pF |
-- |
-- |
-- |
-- |
5 |
15 |
45 |
45 |
70 |
70 |
|
|
51-744-003﹡ |
44-0001 |
1 |
125 |
85 |
15 |
Pi |
3000pF |
-- |
-- |
-- |
-- |
10 |
15 |
30 |
40 |
65 |
65 |
|
|
SCI-3223-000 |
--- |
2 |
200 |
115 |
10 |
Pi |
2000pF |
7.92 |
22.61 |
-- |
-- |
8 |
10 |
48 |
50 |
70 |
70 |
|
|
1250-003 |
-- |
2 |
200 |
-- |
10 |
Pi |
3000pF |
7.92 |
22.61 |
-- |
-- |
5 |
15 |
45 |
65 |
70 |
70 |
|
|
51-712-001﹡ |
-- |
2 |
200 |
-- |
10 |
Pi |
3000pF |
7.92 |
22.61 |
-- |
-- |
5 |
15 |
45 |
65 |
70 |
70 |
|
|
1250-049 |
-- |
2 |
200 |
-- |
10 |
Pi |
3000pF |
7.92 |
14.68 |
-- |
-- |
5 |
15 |
45 |
65 |
65 |
60 |
|
|
51-744-002﹟ |
-- |
2 |
200 |
-- |
10 |
Pi |
5500pF |
6.73 |
10.49 |
-- |
7 |
14 |
30 |
55 |
70 |
70 |
70 |
|
|
1293-000 |
-- |
3 |
200 |
-- |
10 |
Pi |
0.012µF |
-- |
-- |
5 |
10 |
28 |
40 |
65 |
70 |
70 |
70 |
|
﹡表示turret引线
﹟表示提供的引线直径为1.02mm
