5/16-24 & 5/16-32螺装(孔径8.20mm) C & Pi型电路 |
|
|
|
|
|
5/16-24 & 5/16-32螺装(孔径8.20mm) C & Pi型电路
|
型号 |
M15733

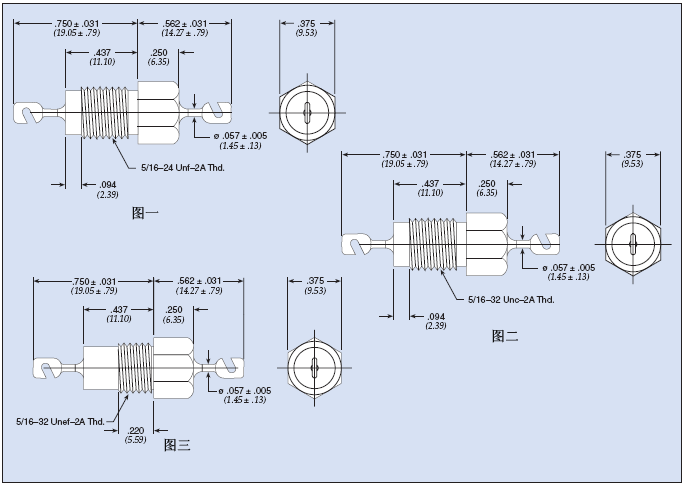

军标号 |
图
号 |
额定电压
125℃ |
电流
Amp |
电
路 |
最小
电容量 |
最小插入损耗（dＢ） |
|
|
1
MHz |
3
MHz |
10
MHz |
30
MHz |
100
MHz |
300
MHz |
1
GHz |
10
GHz |
|
|
DC |
AC |
|
|
SCI-9510-503 |
--- |
1 |
100 |
-- |
25 |
C |
0.05µF |
15 |
24 |
35 |
41 |
45 |
60 |
60 |
60 |
|
|
SCI-3513-000 |
--- |
1 |
100 |
-- |
25 |
Pi |
0.1µF |
10 |
18 |
28 |
37 |
70 |
70 |
70 |
70 |
|
|
SCI-3523-000 |
--- |
1 |
200 |
115 |
25 |
Pi |
0.02µF |
-- |
-- |
25 |
50 |
66 |
66 |
70 |
70 |
|
|
SCI-3543-000 |
-- |
1 |
400 |
220 |
25 |
Pi |
6000pF |
-- |
-- |
15 |
35 |
54 |
65 |
70 |
70 |
|
|
SCI-9550-102 |
--- |
1 |
500 |
115 |
25 |
C |
1000pF |
-- |
-- |
-- |
11 |
20 |
28 |
28 |
28 |
|
|
1202-052 |
--- |
1 |
500 |
-- |
25 |
Pi |
3000pF |
-- |
-- |
10 |
35 |
55 |
55 |
70 |
70 |
|
|
1202-054 |
-- |
2 |
500 |
-- |
25 |
Pi |
3000pF |
-- |
-- |
10 |
35 |
55 |
55 |
70 |
70 |
|
|
51-702-020﹡ |
61-0003 |
3 |
500 |
350 |
25 |
Pi |
3000pF |
-- |
-- |
-- |
35 |
55 |
55 |
70 |
70 |
|
|
51-702-021 |
61-0004 |
3 |
500 |
350 |
25 |
Pi |
3000pF |
-- |
-- |
10 |
35 |
55 |
55 |
70 |
70 |
|
|
SCI-9550-332 |
-- |
1 |
500 |
115 |
25 |
C |
3300pF |
-- |
-- |
12 |
20 |
30 |
33 |
40 |
40 |
|
|
SCI-3553-000 |
-- |
1 |
500 |
220 |
25 |
Pi |
0.012µF |
-- |
-- |
18 |
28 |
52 |
52 |
70 |
70 |
|
|
1202-005 |
-- |
2 |
700 |
-- |
25 |
Pi |
2000pF |
-- |
-- |
5 |
20 |
50 |
55 |
70 |
70 |
|
﹡表示5/16-24螺纹 |
|
|
|
|
|
