焊接式 C型电路
|
型号 |

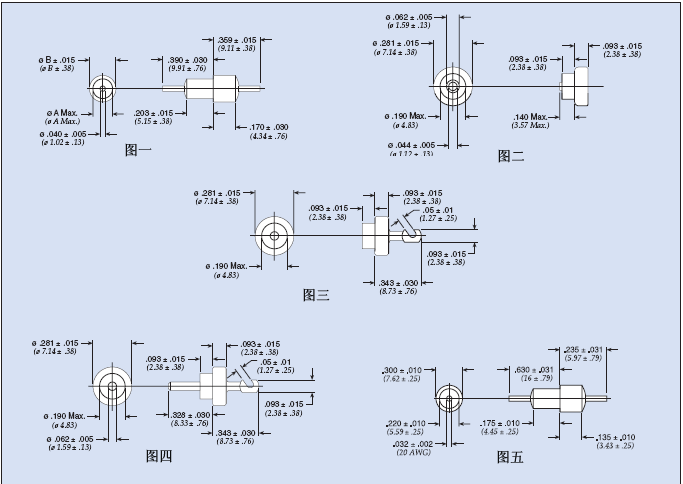

图
号 |
A
mm |
B
mm |
额定电压
125℃ |
电流
Amp |
电容量﹡
|
最小插入损耗（dＢ） |
|
|
1
MHz |
10
MHz |
30
MHz |
100
MHz |
300
MHz |
1
GHz |
10
GHz |
|
|
DC |
|
|
54-786-003 |
1 |
3.96 |
5.16 |
50 |
10 |
0.30µF |
32 |
47 |
54 |
60 |
66 |
70 |
20 |
|
|
54-785-002 |
1 |
3.18 |
4.32 |
100 |
10 |
0.05µF（min） |
16 |
33 |
41 |
45 |
48 |
50 |
50 |
|
|
54794002X5R101M |
4 |
--- |
--- |
250 |
25 |
100pF±20% |
--- |
--- |
--- |
--- |
10 |
20 |
20 |
|
|
54803004X5R101M |
3 |
--- |
--- |
250 |
25 |
100pF±20% |
--- |
--- |
--- |
--- |
10 |
20 |
20 |
|
|
54802002X5R471M |
2 |
--- |
--- |
250 |
25 |
100pF±20% |
--- |
--- |
--- |
--- |
10 |
20 |
20 |
|
|
54794002X5R471M |
4 |
--- |
--- |
250 |
25 |
470pF±20% |
--- |
--- |
--- |
12 |
22 |
25 |
25 |
|
|
54803004X5R471M |
3 |
--- |
--- |
250 |
25 |
470pF±20% |
--- |
--- |
--- |
12 |
22 |
25 |
25 |
|
|
54802002X5R471M |
2 |
--- |
--- |
250 |
25 |
470pF±20% |
--- |
--- |
--- |
12 |
22 |
25 |
25 |
|
|
54802002X5V102P |
2 |
--- |
--- |
250 |
25 |
1000pF |
--- |
--- |
--- |
15 |
25 |
35 |
40 |
|
|
54803004X5V102P |
3 |
--- |
--- |
250 |
25 |
1000pF |
--- |
--- |
--- |
15 |
25 |
35 |
40 |
|
|
54794002X5V102P |
4 |
--- |
--- |
250 |
25 |
1000pF |
--- |
--- |
--- |
15 |
25 |
35 |
40 |
|
|
54-785-047 |
5 |
--- |
--- |
750 |
10 |
1000pF |
--- |
4 |
--- |
20 |
25 |
35 |
40 |
|
﹡表示电容量误差为+100/-0%(已标注的除外)
