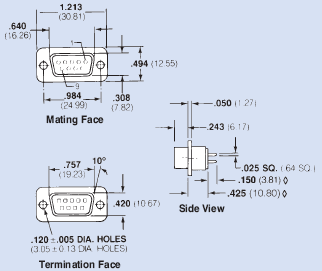

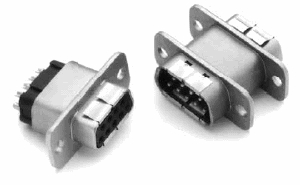

9芯 孔式、针/孔转接式700系列滤波连接器 |
|
|
|
|
|
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-703-001 |
A |
310 pF Pi |
|
|
56-703-002 |
B |
1000 pF C |
|
|
56-703-003 |
C |
1000 pF Pi |
|
|
56-703-004 |
D |
5000 pF C |
|
|
56-703-005 |
E |
4000 pF Pi |
|
|
56-703-022 |
F |
830 pF C |
|
|
56-703-023 |
J |
100 pF Pi |
|
|
56-703-024 |
K |
2500 pF Pi |
|
|
56-703-036 |
N |
375 pF C |
|
|
56-703-047 |
L |
500 pF C |
|

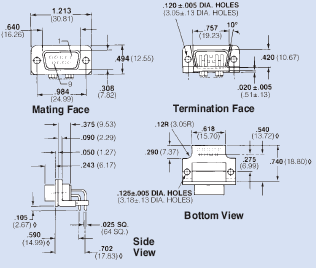

9孔PCB直角安装
|
连接器
型号
|
EMI滤波 |
 |
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-704-001 |
A |
310 pF Pi |
|
|
56-704-002 |
B |
1000 pF C |
|
|
56-704-003 |
C |
1000 pF Pi |
|
|
56-704-004 |
D |
5000 pF C |
|
|
56-704-005 |
E |
4000 pF Pi |
|
|
56-704-007 |
F |
830 pF C |
|
|
56-704-008 |
J |
100 pF Pi |
|
|
56-704-009 |
K |
2500 pF Pi |
|
|
56-704-018 |
N |
375 pF C |
|
|
56-704-035 |
L |
500 pF C |
|

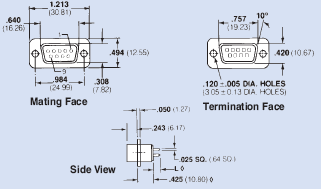

9孔无焊绕接引线
|
型号选项（引线长度） |
EMI滤波 |
|
|
|
型号 |
L
12.7 |
L
9.53 |
L
6.35 |
滤波
代码 |
电容量 |
|
|
|
56-703 -006 -016 -011 |
A |
310 pF Pi |
|
|
56-703 -007 -017 -012 |
B |
1000 pF C |
|
|
56-703 -008 -018 -013 |
C |
1000 pF Pi |
|
|
56-703 -009 -019 -014 |
D |
5000 pF C |
|
|
56-703 -010 -020 -015 |
E |
4000 pF Pi |
|
|
56-703 -031 -028 -025 |
F |
830 pF C |
|
|
56-703 -032 -029 -026 |
J |
100 pF Pi |
|
|
56-703 -033 -030 -027 |
K |
2500 pF Pi |
|
|
56-703 -039 -038 -037 |
N |
375 pF C |

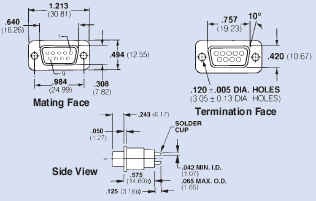

| 9 孔焊杯引线
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-706-001 |
A |
310 pF Pi |
|
|
56-706-002 |
B |
1000 pF C |
|
|
56-706-003 |
C |
1000 pF Pi |
|
|
56-706-004 |
D |
5000 pF C |
|
|
56-706-005 |
E |
4000 pF Pi |
|
|
56-706-006 |
F |
830 pF C |
|
|
56-706-007 |
J |
100 pF Pi |
|
|
56-706-008 |
K |
2500 pF Pi |
|
|
56-706-009 |
N |
375 pF C |
|
|
56-706-017 |
L |
500 pF C |
|

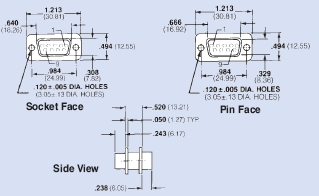

9针/孔转接器
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-705-001 |
A |
310 pF Pi |
|
|
56-705-002 |
B |
1000 pF C |
|
|
56-705-003 |
C |
1000 pF Pi |
|
|
56-705-004 |
D |
5000 pF C |
|
|
56-705-005 |
E |
4000 pF Pi |
|
|
56-705-008 |
F |
830 pF C |
|
|
56-705-009 |
J |
100 pF Pi |
|
|
56-705-010 |
K |
2500 pF Pi |
|
|
56-705-026 |
N |
375 pF C |
|
|
56-705-049 |
L |
500 pF C |
| |
|
|
|
|
|
