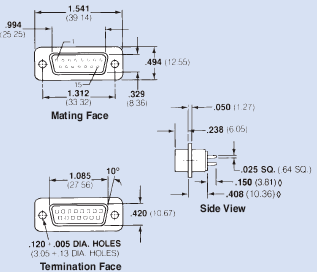

15芯 针式700系列滤波连接器 |
|
|
|
|
|
|
连接器
型号
|
EMI滤波 |
 |
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-711-001 |
A |
310 pF Pi |
|
|
56-711-002 |
B |
1000 pF C |
|
|
56-711-003 |
C |
1000 pF Pi |
|
|
56-711-004 |
D |
5000 pF C |
|
|
56-711-005 |
E |
4000 pF Pi |
|
|
56-711-028 |
F |
830 pF C |
|
|
56-711-029 |
J |
100 pF Pi |
|
|
56-711-030 |
K |
2500 pF C |
|
|
56-711-048 |
N |
375 pF C |
|
|
56-711-088 |
L |
500 pF C |
|

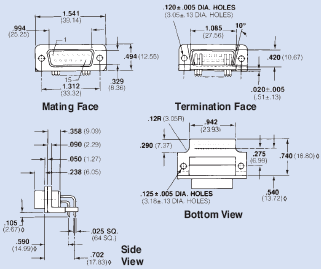

15针PCB直角安装
|
连接器
型号
|
EMI滤波 |
 |
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-712-001 |
A |
310 pF Pi |
|
|
56-711-002 |
B |
1000 pF C |
|
|
56-711-003 |
C |
1000 pF Pi |
|
|
56-711-004 |
D |
5000 pF C |
|
|
56-711-005 |
E |
4000 pF Pi |
|
|
56-711-007 |
F |
830 pF C |
|
|
56-711-008 |
J |
100 pF Pi |
|
|
56-711-009 |
K |
2500 pF C |
|
|
56-711-017 |
N |
375 pF C |
|
|
56-711-039 |
L |
500 pF C |
|

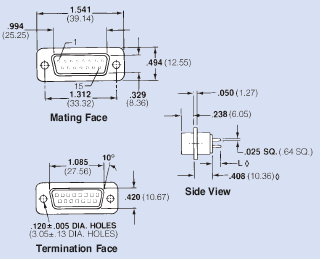

15针无焊绕接引线
|
型号选项（引线长度） |
EMI滤波 |
 |
|
|
型号 |
L
12.7 |
L
9.53 |
L
6.35 |
滤波
代码 |
电容量 |
|
|
|
56-711 -006 -023 -018 |
A |
310 pF Pi |
|
|
56-711 -007 -024 -019 |
B |
1000 pF C |
|
|
56-711 -008 -025 -020 |
C |
1000 pF Pi |
|
|
56-711 -009 -026 -021 |
D |
5000 pF C |
|
|
56-711 -010 -027 -022 |
E |
4000 pF Pi |
|
|
56-711 -037 -034 -031 |
F |
830 pF C |
|
|
56-711 -038 -035 -032 |
J |
100 pF Pi |
|
|
56-711 -039 -036 -033 |
K |
2500 pF C |
|
|
56-711 -051 -050 -049 |
N |
375 pF C |

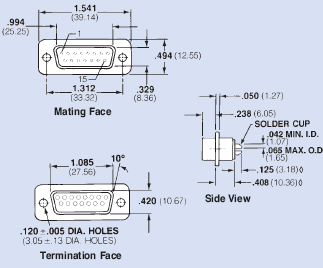

| 15 针焊杯引线
|
连接器
型号
|
EMI滤波 |
 |
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-711-011 |
A |
310 pF Pi |
|
|
56-711-012 |
B |
1000 pF C |
|
|
56-711-013 |
C |
1000 pF Pi |
|
|
56-711-014 |
D |
5000 pF C |
|
|
56-711-015 |
E |
4000 pF Pi |
|
|
56-711-040 |
F |
830 pF C |
|
|
56-711-041 |
J |
100 pF Pi |
|
|
56-711-042 |
K |
2500 pF C |
|
|
56-711-085 |
N |
375 pF C |
|
|
56-711-086 |
L |
500 pF C |
| |
|
|
|
|
|
