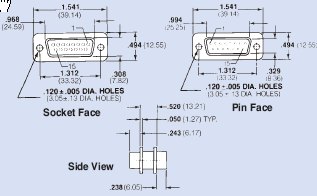

15芯 孔式、针/孔转接式700系列滤波连接器 |
|
|
|
|
|
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-713-001 |
A |
310 pF Pi |
|
|
56-713-002 |
B |
1000 pF C |
|
|
56-713-003 |
C |
1000 pF Pi |
|
|
56-713-004 |
D |
5000 pF C |
|
|
56-713-005 |
E |
4000 pF Pi |
|
|
56-713-021 |
F |
830 pF C |
|
|
56-713-022 |
J |
100 pF Pi |
|
|
56-713-023 |
K |
2500 pF Pi |
|
|
56-713-037 |
N |
375 pF C |
|
|
56-713-045 |
L |
500 pF C |
|

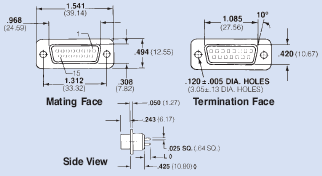

15孔PCB直角安装
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-714-001 |
A |
310 pF Pi |
|
|
56-714-002 |
B |
1000 pF C |
|
|
56-714-003 |
C |
1000 pF Pi |
|
|
56-714-004 |
D |
5000 pF C |
|
|
56-714-005 |
E |
4000 pF Pi |
|
|
56-714-006 |
F |
830 pF C |
|
|
56-714-007 |
J |
100 pF Pi |
|
|
56-714-008 |
K |
2500 pF Pi |
|
|
56-714-017 |
N |
375 pF C |
|
|
56-714-031 |
L |
500 pF C |
|
|

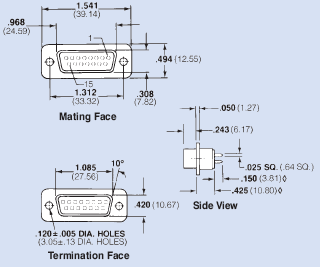

型号选项（引线长度） |
EMI滤波 |
|
|
|
型号 |
L
12.7 |
L
9.53 |
L
6.35 |
滤波
代码 |
电容量 |
|
|
|
56-713 -006 -016 -011 |
A |
310 pF Pi |
|
|
56-713 -007 -017 -012 |
B |
1000 pF C |
|
|
56-713 -008 -018 -013 |
C |
1000 pF Pi |
|
|
56-713 -009 -019 -014 |
D |
5000 pF C |
|
|
56-713 -010 -020 -015 |
E |
4000 pF Pi |
|
|
56-713 -030 -027 -024 |
F |
830 pF C |
|
|
56-713 -031 -028 -025 |
J |
100 pF Pi |
|
|
56-713 -032 -029 -026 |
K |
2500 pF Pi |
|
|
56-713 -040 -039 -038 |
N |
375 pF C |

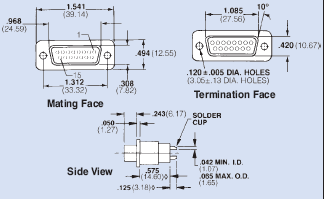

| 15 孔焊杯引线
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-716-001 |
A |
310 pF Pi |
|
|
56-716-002 |
B |
1000 pF C |
|
|
56-716-003 |
C |
1000 pF Pi |
|
|
56-716-004 |
D |
5000 pF C |
|
|
56-716-005 |
E |
4000 pF Pi |
|
|
56-716-006 |
F |
830 pF C |
|
|
56-716-007 |
J |
100 pF Pi |
|
|
56-716-008 |
K |
2500 pF Pi |
|
|
56-716-009 |
N |
375 pF C |
|
|
56-716-013 |
L |
500 pF C |
|

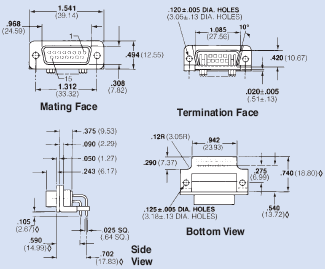

15针/孔转接器
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-715-001 |
A |
310 pF Pi |
|
|
56-715-002 |
B |
1000 pF C |
|
|
56-715-003 |
C |
1000 pF Pi |
|
|
56-715-004 |
D |
5000 pF C |
|
|
56-715-005 |
E |
4000 pF Pi |
|
|
56-715-007 |
F |
830 pF C |
|
|
56-715-008 |
J |
100 pF Pi |
|
|
56-715-009 |
K |
2500 pF Pi |
|
|
56-715-015 |
N |
375 pF C |
|
|
56-715-040 |
L |
500 pF C |
| |
|
|
|
|
|
