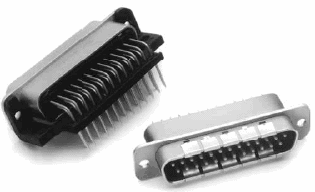

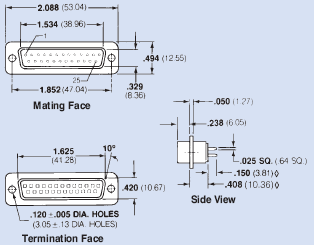

25芯 针式700系列滤波连接器 |
|
|
|
|
|
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-721-001 |
A |
310 pF Pi |
|
|
56-721-002 |
B |
1000 pF C |
|
|
56-721-003 |
C |
1000 pF Pi |
|
|
56-721-004 |
D |
5000 pF C |
|
|
56-721-005 |
E |
4000 pF Pi |
|
|
56-721-033 |
F |
830 pF C |
|
|
56-721-034 |
J |
100 pF Pi |
|
|
56-721-035 |
K |
2500 pF Pi |
|
|
56-721-063 |
N |
375 pF C |
|
|
56-721-111 |
L |
500 pF C |
|

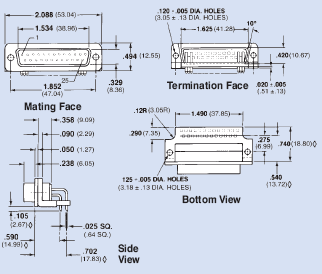

25针PCB直角安装
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-722-001 |
A |
310pF Pi |
|
|
56-722-002 |
B |
1000 pF C |
|
|
56-722-003 |
C |
1000 pF Pi |
|
|
56-722-004 |
D |
5000 pF C |
|
|
56-722-005 |
E |
4000 pF Pi |
|
|
56-722-008 |
F |
830 pF C |
|
|
56-722-009 |
J |
100 pF Pi |
|
|
56-722-010 |
K |
2500 pF Pi |
|
|
56-722-027 |
N |
375 pF C |
|
|
56-722-060 |
L |
500 pF C |
|
|

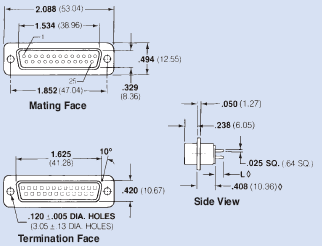

型号选项（引线长度） |
EMI滤波 |
|
|
|
型号 |
L
12.7 |
L
9.53 |
L
6.35 |
滤波
代码 |
电容量 |
|
|
|
56-721 -006 -028 -024 |
A |
310 pF Pi |
|
|
56-721 -007 -029 -025 |
B |
1000 pF C |
|
|
56-721 -008 -030 -026 |
C |
1000 pF Pi |
|
|
56-721 -009 -031 -022 |
D |
5000 pF C |
|
|
56-721 -010 -032 -027 |
E |
4000 pF Pi |
|
|
56-721 -042 -039 -036 |
F |
830 pF C |
|
|
56-721 -043 -040 -037 |
J |
100 pF Pi |
|
|
56-721 -044 -041 -038 |
K |
2500 pF Pi |
|
|
56-721 -066 -065 -064 |
N |
375 pF C |
| 25 针焊杯引线
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-721-011 |
A |
310pF Pi |
|
|
56-721-012 |
B |
1000 pF C |
|
|
56-721-013 |
C |
1000 pF Pi |
|
|
56-721-014 |
D |
5000 pF C |
|
|
56-721-015 |
E |
4000 pF Pi |
|
|
56-721-045 |
F |
830 pF C |
|
|
56-721-046 |
J |
100 pF Pi |
|
|
56-721-047 |
K |
2500 pF Pi |
|
|
56-721-070 |
N |
375 pF C |
|
|
56-721-112 |
L |
500 pF C |
|
|
|
|
|
|
|
