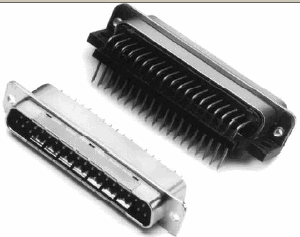

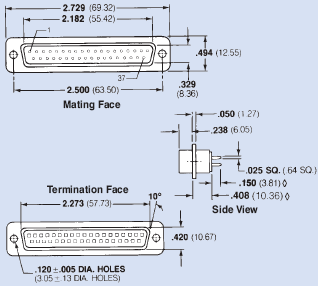

37芯 针式700系列滤波连接器 |
|
|
|
|
|
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-731-001 |
A |
310pF Pi |
|
|
56-731-002 |
B |
1000pF C |
|
|
56-731-003 |
C |
1000pF Pi |
|
|
56-731-004 |
D |
5000pF C |
|
|
56-731-005 |
E |
4000pF Pi |
|
|
56-731-028 |
F |
830pF C |
|
|
56-731-029 |
J |
100pF Pi |
|
|
56-731-030 |
K |
2500pF Pi |
|
|
56-731-048 |
N |
375pF C |
|
|
56-731-076 |
L |
500pF C |
|

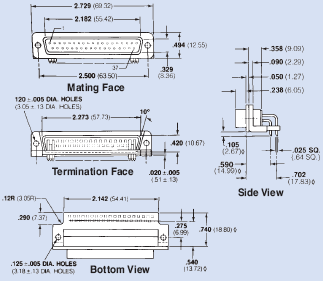

37针PCB直角安装
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-732-001 |
A |
310pF Pi |
|
|
56-732-002 |
B |
1000pF C |
|
|
56-732-003 |
C |
1000pF Pi |
|
|
56-732-004 |
D |
5000pF C |
|
|
56-732-005 |
E |
4000pF Pi |
|
|
56-732-006 |
F |
830pF C |
|
|
56-732-007 |
J |
100pF Pi |
|
|
56-732-008 |
K |
2500pF Pi |
|
|
56-732-009 |
N |
375pF C |
|
|
56-732-023 |
L |
500pF C |
|

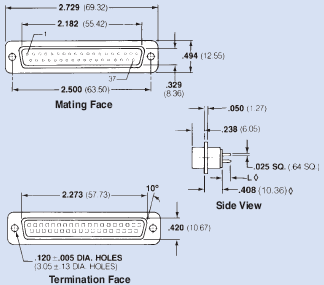

37针无焊绕接引线
|
型号选项（引线长度） |
EMI滤波 |
|
|
|
型号 |
L
12.7 |
L
9.53 |
L
6.35 |
滤波
代码 |
电容量 |
|
|
|
56-731 -006 -028 -024 |
A |
310pF Pi |
|
|
56-731 -007 -024 -019 |
B |
1000PF C |
|
|
56-731 -008 -025 -020 |
C |
1000pF Pi |
|
|
56-731 -009 -026 -021 |
D |
5000pF C |
|
|
56-731 -010 -027 -022 |
E |
4000pF Pi |
|
|
56-731 -037 -034 -031 |
F |
830pF C |
|
|
56-731 -038 -035 -032 |
J |
100Pf Pi |
|
|
56-731 -039 -036 -033 |
K |
2500pF Pi |
|
|
56-731 -051 -050 -049 |
N |
375pF C |
|

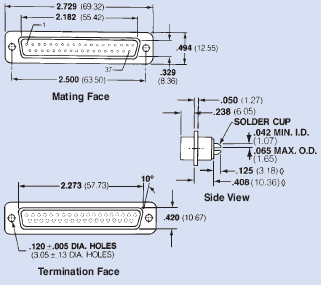

37针焊杯引线
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-731-011 |
A |
310pF Pi |
|
|
56-731-012 |
B |
1000pF C |
|
|
56-731-013 |
C |
1000pF Pi |
|
|
56-731-014 |
D |
5000pF C |
|
|
56-731-015 |
E |
4000pF Pi |
|
|
56-731-040 |
F |
830pF C |
|
|
56-731-041 |
J |
100pF Pi |
|
|
56-731-042 |
K |
2500pF Pi |
|
|
56-731-060 |
N |
375pF C |
|
|
56-731-077 |
L |
500pF C |
| |
|
|
|
|
|
