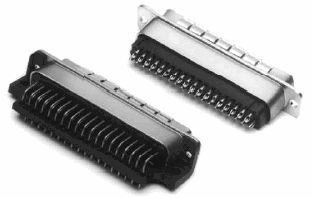

37芯 孔式、针/孔转接式700系列滤波连接器 |
|
|
|
|
|

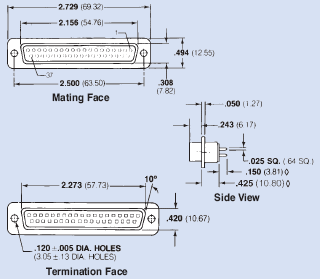

37孔PCB安装
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-733-001 |
A |
310pF Pi |
|
|
56-733-002 |
B |
1000pF C |
|
|
56-733-003 |
C |
1000pF Pi |
|
|
56-733-004 |
D |
5000pF C |
|
|
56-733-005 |
E |
4000pF Pi |
|
|
56-733-021 |
F |
830pF C |
|
|
56-733-022 |
J |
100pF Pi |
|
|
56-733-023 |
K |
2500pF Pi |
|
|
56-733-035 |
N |
375pF C |
|
|
56-733-046 |
L |
500pF C |
|

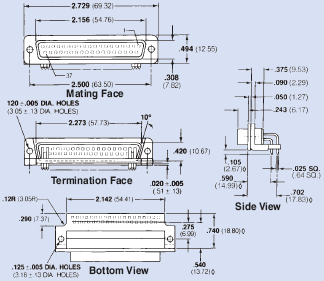

37孔PCB直角安装
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-734-001 |
A |
310pF Pi |
|
|
56-734-002 |
B |
1000pF C |
|
|
56-734-003 |
C |
1000pF Pi |
|
|
56-734-004 |
D |
5000pF C |
|
|
56-734-005 |
E |
4000pF Pi |
|
|
56-734-006 |
F |
830pF C |
|
|
56-734-007 |
J |
100pF Pi |
|
|
56-734-008 |
K |
2500pF Pi |
|
|
56-734-012 |
N |
375pF C |
|
|
56-734-021 |
L |
500pF C |
|
37孔无焊绕接引线
|
型号选项（引线长度） |
EMI滤波 |
|
|
|
型号 |
L
12.7 |
L
9.53 |
L
6.35 |
滤波
代码 |
电容量 |
|
|
|
56-733 -006 -016 -011 |
A |
310pF Pi |
|
|
56-733 -007 -017 -012 |
B |
1000pF C |
|
|
56-733 -008 -018 -013 |
C |
1000pF Pi |
|
|
56-733 -009 -019 -014 |
D |
5000pF C |
|
|
56-733 -010 -020 -015 |
E |
4000pF Pi |
|
|
56-733 -030 -027 -024 |
F |
830pF C |
|
|
56-733 -031 -028 -025 |
J |
100pF Pi |
|
|
56-733 -032 -029 -026 |
K |
2500pF Pi |
|
|
56-733 -038 -037 -036 |
N |
375pF C |
|

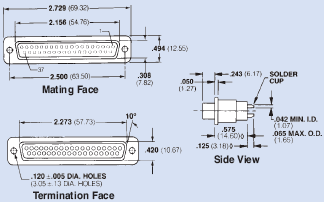

37孔焊杯引线
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-736-001 |
A |
310pF Pi |
|
|
56-736-002 |
B |
1000pF C |
|
|
56-736-003 |
C |
1000pF Pi |
|
|
56-736-004 |
D |
5000pF C |
|
|
56-736-005 |
E |
4000pF Pi |
|
|
56-736-006 |
F |
830pF C |
|
|
56-736-007 |
J |
100pF Pi |
|
|
56-736-008 |
K |
2500pF Pi |
|
|
56-736-009 |
N |
375pF C |
|
|
56-736-015 |
L |
500pF C |
|

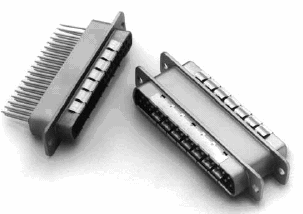

37针/孔转接器
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-735-001 |
A |
310pF Pi |
|
|
56-735-002 |
B |
1000pF C |
|
|
56-735-003 |
C |
1000pF Pi |
|
|
56-735-004 |
D |
5000pF C |
|
|
56-735-005 |
E |
4000pF Pi |
|
|
56-735-008 |
F |
830pF C |
|
|
56-735-009 |
J |
100pF Pi |
|
|
56-735-010 |
K |
2500pF Pi |
|
|
56-735-025 |
N |
375pF C |
|
|
56-735-034 |
L |
500pF C |
| |
|
|
|
|
|
