50芯 针式700系列滤波连接器 |
|
|
|
|
|

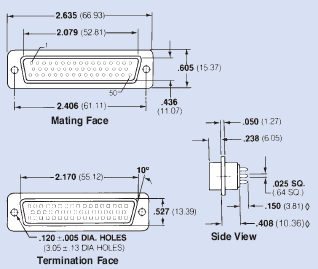

50针PCB安装
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-741-001 |
A |
310pF Pi |
|
|
56-741-002 |
B |
1000pF C |
|
|
56-741-003 |
C |
1000pF Pi |
|
|
56-741-004 |
D |
5000pF C |
|
|
56-741-005 |
E |
4000pF Pi |
|
|
56-741-027 |
F |
830pF C |
|
|
56-741-028 |
J |
100pF Pi |
|
|
56-741-029 |
K |
2500pF Pi |
|
|
56-741-042 |
N |
375pF C |
|
|
56-741-066 |
L |
500pF C |
|

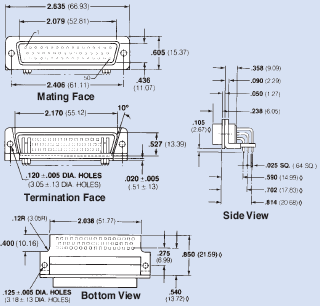

50针PCB直角安装
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-742-001 |
A |
310pF Pi |
|
|
56-742-002 |
B |
1000pF C |
|
|
56-742-003 |
C |
1000pF Pi |
|
|
56-742-004 |
D |
5000pF C |
|
|
56-742-005 |
E |
4000pF Pi |
|
|
56-742-006 |
F |
830pF C |
|
|
56-742-007 |
J |
100pF Pi |
|
|
56-742-008 |
K |
2500pF Pi |
|
|
56-742-009 |
N |
375pF C |
|
|
56-742-022 |
L |
500pF C |
|

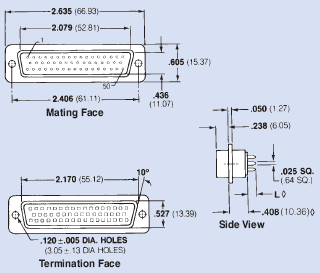

50针无焊绕接引线
|
型号选项（引线长度） |
EMI滤波 |
|
|
|
型号 |
L
12.7 |
L
9.53 |
L
6.35 |
滤波
代码 |
电容量 |
|
|
|
56-741 -006 -022 -017 |
A |
310pF Pi |
|
|
56-741 -007 -023 -018 |
B |
1000pF C |
|
|
56-741 -008 -024 -019 |
C |
1000pF Pi |
|
|
56-741 -009 -025 -020 |
D |
5000pF C |
|
|
56-741 -010 -026 -021 |
E |
4000pF Pi |
|
|
56-741 -036 -033 -030 |
F |
830pF C |
|
|
56-741 -037 -034 -031 |
J |
100pF Pi |
|
|
56-741 -038 -035 -032 |
K |
2500pF Pi |
|
|
56-741 -045 -044 -043 |
N |
375pF C |
|

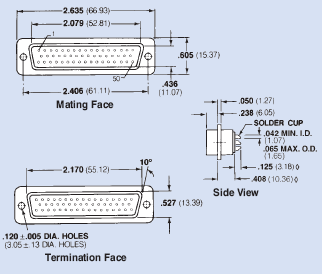

50针焊杯引线
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-741-011 |
A |
310pF Pi |
|
|
56-741-012 |
B |
1000pF C |
|
|
56-741-013 |
C |
1000pF Pi |
|
|
56-741-014 |
D |
5000pF C |
|
|
56-741-015 |
E |
4000pF Pi |
|
|
56-741-039 |
F |
830pF C |
|
|
56-741-040 |
J |
100pF Pi |
|
|
56-741-041 |
K |
2500pF Pi |
|
|
56-741-063 |
N |
375pF C |
|
|
56-741-067 |
L |
500pF C |
| |
|
|
|
|
|
