50芯 孔式、针/孔转接式700系列滤波连接器 |
|
|
|
|
|

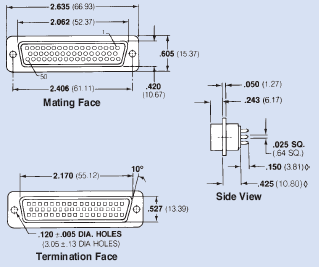

50孔PCB安装
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-743-001 |
A |
310pF Pi |
|
|
56-743-002 |
B |
1000pF C |
|
|
56-743-003 |
C |
1000pF Pi |
|
|
56-743-004 |
D |
5000pF C |
|
|
56-743-005 |
E |
4000pF Pi |
|
|
56-743-021 |
F |
830pF C |
|
|
56-743-022 |
J |
100pF Pi |
|
|
56-743-023 |
K |
2500pF Pi |
|
|
56-743-033 |
N |
375pF C |
|
|
56-743-043 |
L |
500pF C |
|

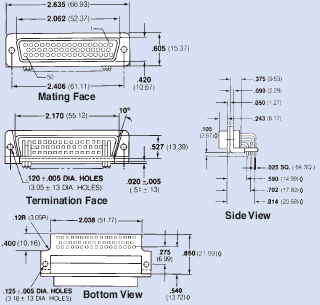

50孔PCB直角安装
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-744-001 |
A |
310pF Pi |
|
|
56-744-002 |
B |
1000pF C |
|
|
56-744-003 |
C |
1000pF Pi |
|
|
56-744-004 |
D |
5000pF C |
|
|
56-744-005 |
E |
4000pF Pi |
|
|
56-744-006 |
F |
830pF C |
|
|
56-744-007 |
J |
100pF Pi |
|
|
56-744-008 |
K |
2500pF Pi |
|
|
56-744-009 |
N |
375pF C |
|
|
56-744-012 |
L |
500pF C |
|

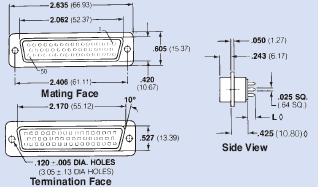

50孔无焊绕接引线
|
型号选项（引线长度） |
EMI滤波 |
|
|
|
型号 |
L
12.7 |
L
9.53 |
L
6.35 |
滤波
代码 |
电容量 |
|
|
|
56-743 -006 -016 -011 |
A |
310pF Pi |
|
|
56-743 -007 -017 -012 |
B |
1000pF C |
|
|
56-743 -008 -018 -013 |
C |
1000pF Pi |
|
|
56-743 -009 -019 -014 |
D |
5000pF C |
|
|
56-743 -010 -020 -015 |
E |
4000pF Pi |
|
|
56-743 -030 -027 -024 |
F |
830pF C |
|
|
56-743 -031 -028 -025 |
J |
100pF Pi |
|
|
56-743 -032 -029 -026 |
K |
2500pF Pi |
|
|
56-743 -036 -035 -034 |
N |
375pF C |
|

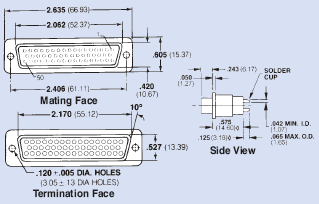

50孔焊杯引线
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-746-001 |
A |
310pF Pi |
|
|
56-746-002 |
B |
1000pF C |
|
|
56-746-003 |
C |
1000pF Pi |
|
|
56-746-004 |
D |
5000pF C |
|
|
56-746-005 |
E |
4000pF Pi |
|
|
56-746-006 |
F |
830pF C |
|
|
56-746-007 |
J |
100pF Pi |
|
|
56-746-008 |
K |
2500pF Pi |
|
|
56-746-009 |
N |
375pF C |
|
|
56-746-018 |
L |
500pF C |
|

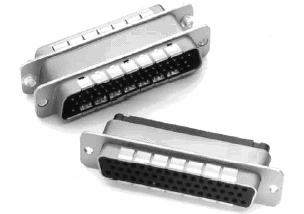

50针/孔转接器
|
连接器
型号
|
EMI滤波 |
|
|
|
滤波
设计代码 |
电容量 |
|
|
|
56-745-001 |
A |
310pF Pi |
|
|
56-745-002 |
B |
1000pF C |
|
|
56-745-003 |
C |
1000pF Pi |
|
|
56-745-004 |
D |
5000pF C |
|
|
56-745-005 |
E |
4000pF Pi |
|
|
56-745-006 |
F |
830pF C |
|
|
56-745-007 |
J |
100pF Pi |
|
|
56-745-008 |
K |
2500pF Pi |
|
|
56-745-019 |
N |
375pF C |
|
|
56-745-027 |
L |
500pF C |
| |
|
|
|
|
|
