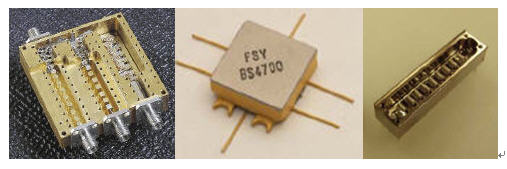

Lumped Element
Product Features:
* 30kHz to 20GHz
* Compact desgin
* Surface mount availabe
* Wide range of transfer functions
* This topology is ideal for lowpass, highpass, bandpass, bandstop and multiplexing applications
R Series Standard LC Filters
Product Features:
* Frequency range: 30kHz to 1GHz
* Bandwidths: 3 to 200%
* Can be designed for high power applications
* 2-10 section package 0.63, "H0.75xW0.75x L=1.0 to 6.0" plus connectors
* Reasonable size Vs performance

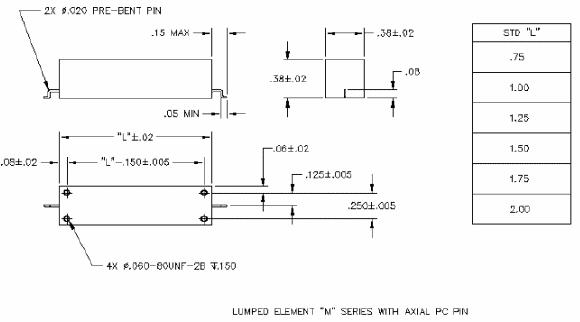

M, S, T Series Micro-Miniature LC Filters
Product features:
* Frequency range: 1MHz to 6GHz
* Bandwidths: 3 to 200%
* Input power level of 1W CW typical
* Size is approx 0.38w x 0.38H x 0.75L
* Also available in surface mount (SMD)
* Mainly used in military applications invironmental poperties

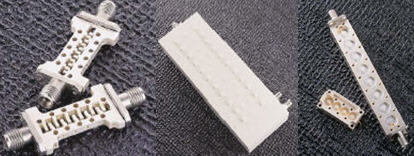

Dielectrically Loaded Waveguide Cavity Ceramic Filters (C Serise)
Product Features:
* Frequency range: 300MHz to 6GHz
* Bandwidths: less than 2%
* Input power level of 1 watt CW
* Up to 12 sections with placed poles
* Bandpass and band reject
* Ideal for low pass, high selectivity receive applications
Ceramic Surface Mount (CB) and Ceramic Monoblock Product Features:
* Frequency range: 300MHz to 6GHz
* Bandwidths: 1 to 10%
* 2-6 section, custom available
* Bandpass and bandreject
* Monoblocks is low cost and small size
* Resonator based are surface mount or leaded
* Typical applications are GPS, ISM, WLAN

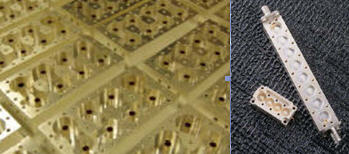

Cavity / Combline / Interdigital Filters
Product Features:
* Frequency from 60MHz to 40GHz
* High selectivity
* Wide range of bandwidths
* Low loss
C Serise Cavity / Combline Filters
Product Features:
* Frequency range: 300MHz to 40GHz
* Bandwidths: 0.5 to 70%
* Can be designed for high peak and average power application
* Excellent volume Vs performance above 5GHz
* Larger in low ferquency range i.e <2GHz, compact in high ferquency range i.e 6GHz and above
* Ideal performance for commercial as well as military application
Interdigital Filter ( C Series)
Product Features:
* Ferquency range: 500MHz to 50GHz
* Bandwidths: 5 to 70%
* Low less
* Ideal for wide bandwidths
* Mostly usded on military application

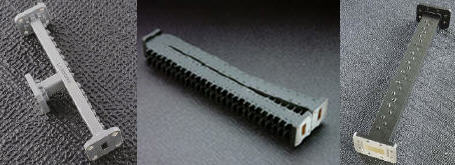

Waveguide Filters
* Frequency range: 2 to 50GHz
* Extremely low loss
* Peak power to 50kW
* High power applications

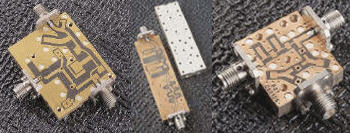

Suspended Substrate Stripline "SSS"
Product Features:
* Ideal for broad band multiplexing
* Frequency range: 2GHz to 18GHz
* Bandwidths: very wide up to 5 Octive BWs
* Mainly used in receiver application
* Broadband surveillance , EW, ECM , ECCM

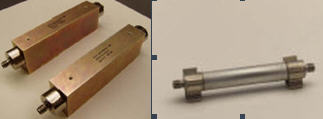

Coaxial Filters
Product Features:
* Ferquency range 30MHz to 20GHz
* Ideal for harmonic suppression and rejection of out of band noise
* High power designs available
* Low cost altemative to LC and cavity product

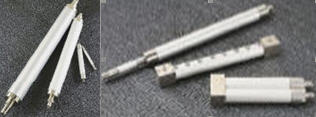

Tubular Lowpass Filters
Product Features:
* Frequency range 30MHz to 20GHz
* 2 to 21elements (2-10 sections)
* High ultimeate rejection levels with broad stop bands
* Ideal for harmonic rejection, high power application
1 / 4 to 11 / 8 Diameter Bandpass Tubular Lowpass FiltersProduct Features:
* Ferquency range: 30MHz to 10GHz
* Bandwidths: 1 to 70%
* Input power levels of 3 watts CW
* 2-10 Poles (sections)
* Lowest cost device for most application
* Can be commerciall or military
* Fast production process time
