不锈钢螺旋管屏蔽衬垫型号
(不锈钢)

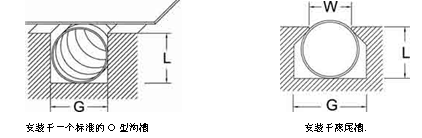

推荐沟槽尺寸
英寸（mm）

直径
英寸（mm）

标准弹力*

中等弹力

低弹力

深度 (L)
+.002"(.051)
-.000"(.000)

宽度 (G)
+.007"(.178)
-.005"(.127)

宽度(W)
+.000"(.000)
-.002"(.051)

NI-02

--

--

.023"
(.584)

.046"
(1.158)

.033"
(.838)

.047" ± .002"
(1.19 ±.051)

NI-03

NM-03 NC

--

.035"
(.889)

.063"
(1.600)

.045"
(1.143)

.063" ± .003"
(1.60 ± .076)

NI-04

NM-04 NC

NL-04 NC

.046"
(1.168)

.094"
(2.388)

.060"
(1.524)

.070" ± .003"
(1.77± .076)

NI-.070

NM-.070 NC

NL-.070 NC

.053"
(1.346)

.094"
(2.388)

.067"
(1.702)

.078" ± .003"
(1.98± .076)

NI-05

NM-05 NC

NL-05 NC

.059"
(1.499)

.109"
(2.769)

.075"
(1.905)

.094" ± .004"
(2.39± .102)

NI-06

NM-06 NC

NL-06 NC

.070"
(1.778)

.125"
(3.175)

.090"
(2.286)

.103" ± .004"
(2.62± .102)

NI-.103

NM-.103 NC

NL-.103 NC

.077"
(1.956)

.141"
(3.581)

.099"
(2.515)

.109" ± .004"
(2.77± .102)

NI-07

NM-07 NC

NL-07 NC

.082"
(2.083)

.156"
(3.962)

.105"
(2.667)

.125" ± .004"
(3.18± .102)

NI-08

NM-08 NC

NL-08 NC

.094"
(2.388)

.171"
(4.343)

.121"
(3.073)

.139" ± .005"
(3.53± .127)

NI-.139

NM-.139 NC

NL-.139 NC

.104"
(2.642)

.187"
(4.750)

.134"
(3.404)

.141" ± .005"
(3.58± .127)

NI-09

NM-09 NC

NL-09 NC

.105"
(2.667)

.187"
(4.750)

.136"
(3.454)

.172" ± .005"
(4.37± .127)

NI-11

NM-11 NC

NL-11 NC

.128"
(3.251)

.234"
(5.944)

.165"
(4.191)

.187" ± .006"
(4.75± .152)

NI-12

NM-12 NC

NL-12 NC

.140"
(3.556)

.250"
(6.350)

.181"
(4.597)

.250" ± .007"
(6.35± .178)

NI-16

NM-16 NC

NL-16 NC

.185"
(4.699)

.343"
(8.712)

.240"
(6.096)

.312" ± .009"
(7.92± .229)

NI-20

NM-20 NC

NL-20 NC

.234"
(5.944)

.422"
(10.719)

.300"
(7.620)
