硅胶内部固化成型的衬垫型号
(镀锡/铅铍铜) |

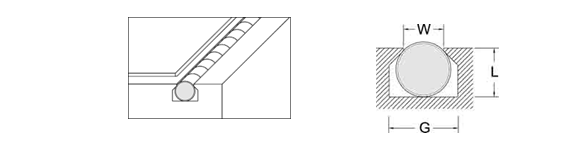

推荐沟槽尺寸
英寸（mm）* |
|
直径
英寸（mm） |
标准弹力 |
中等弹力 |
低弹力 |
深度 (L)
+.002"(.051)
-.000"(.000) |
宽度 (G)
+.007"(.178)
-.005"(.127) |
宽度(W)
+.000"(.000)
-.002"(.051) |
|
.034" ± .002"
(0.86 ±.051) |
SISS-02 |
SIMS-02 |
-- |
.023"
(.584) |
.046"
(1.158) |
.033"
(.838) |
|
.047" ± .002"
(1.19 ±.051) |
SISS-03 |
SIMS-03 |
-- |
.035"
(.889) |
.063"
(1.600) |
.045"
(1.143) |
|
.063" ± .003"
(1.60 ± .076) |
SISS-04 |
SIMS-04 |
SILS-04 |
.046"
(1.168) |
.094"
(2.388) |
.060"
(1.524) |
|
.070" ± .003"
(1.77± .076) |
SISS-.070 |
SIMS-.070 |
SILS-.070 |
.053"
(1.346) |
.094"
(2.388) |
.067"
(1.702) |
|
.078" ± .003"
(1.98± .076) |
SISS-05 |
SIMS-05 |
SILS-05 |
.059"
(1.499) |
.109"
(2.769) |
.075"
(1.905) |
|
.094" ± .004"
(2.39± .102) |
SISS-06 |
SIMS-06 |
SILS-06 |
.070"
(1.778) |
.125"
(3.175) |
.090"
(2.286) |
|
.103" ± .004"
(2.62± .102) |
SISS-.103 |
SIMS-.103 |
SILS-.103 |
.077"
(1.956) |
.141"
(3.581) |
.099"
(2.515) |
|
.109" ± .004"
(2.77± .102) |
SISS-07 |
SIMS-07 |
SILS-07 |
.082"
(2.083) |
.156"
(3.962) |
.105"
(2.667) |
|
.125" ± .004"
(3.18± .102) |
SISS-08 |
SIMS-08 |
SILS-08 |
.094"
(2.388) |
.171"
(4.343) |
.121"
(3.073) |
|
.139" ± .005"
(3.53± .127) |
SISS-.139 |
SIMS-.139 |
SILS-.139 |
.104"
(2.642) |
.187"
(4.750) |
.134"
(3.404) |
|
.141" ± .005"
(3.58± .127) |
SISS-09 |
SIMS-09 |
SILS-09 |
.105"
(2.667) |
.187"
(4.750) |
.136"
(3.454) |
